Datos del producto:
|
| nombre: | Seguidor de leva Yoke Type | Tipo: | Seguidores de leva Yoke Type |
|---|---|---|---|
| O.D. Configuration:: | Cilíndrico | Material: | Acero de calidad para rodamientos de alta aleación |
| Elementos rodantes: | Rodillo de agujas - Complemento completo | Final superficial: | Final negro del óxido |
| Pulgadas - Métrico: | Pulgada | Tipo del sello: | Sellado/abierto modificado para requisitos particulares |
| Alta luz: | Yoke Type Cam Followers sellado,seguidor de leva cilíndrico del óxido negro,CYR 3 S Yoke Type Cam Followers |
||

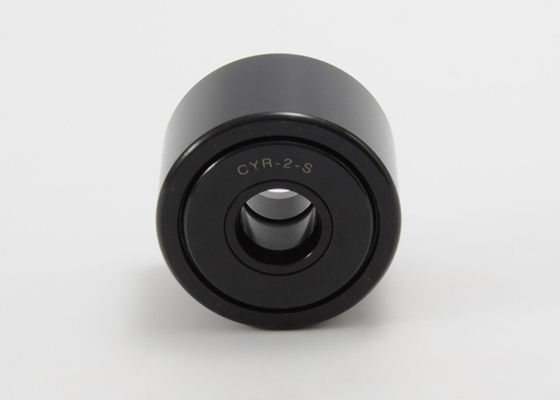

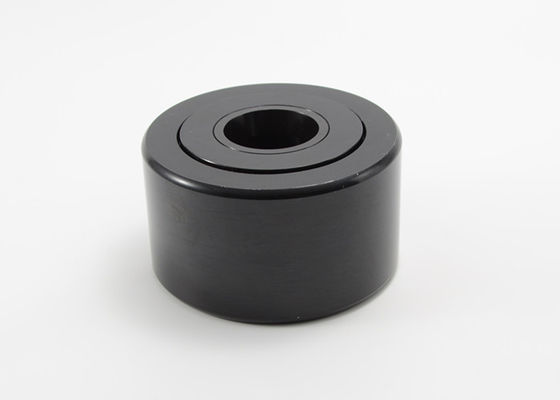

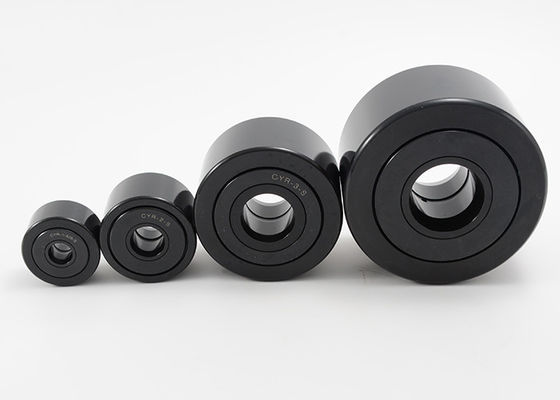

Transportes Yoke Type Sealed Bearing Steel CYR 3/4 S CYR-3-S del seguidor de leva
Seguidor de leva cilíndrico de la pulgada Yoke Type Sealed Bearing Steel CYR 3/4 S CYR-3-S

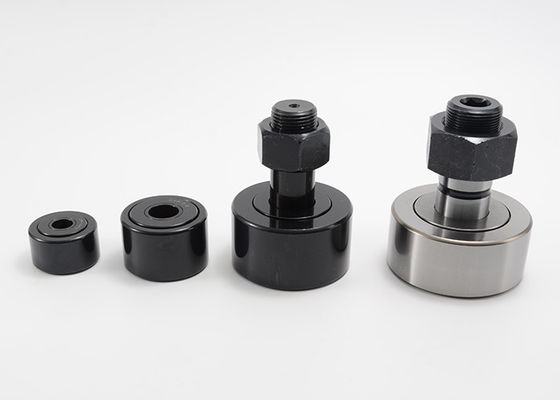

Ofrecemos una línea completa del tipo seguidores del yugo de leva para los usos industriales. Estos transportes están disponibles en el acero de acero, inoxidable. Nos especializamos en seguidores de leva dirigidos para caber usos específicos.
Especificaciones de Yoke Type de los seguidores de leva:
CYR, CYR-S, SERIE DE CCYR-S
| Abierto | Sellado | Sellado | Diámetro del rodillo (RD) | Anchura del rodillo (w) | Diámetro interior (b) | Anchura sobre las placas de extremo (W1) | Diámetro. De las placas de extremo (e) | Diámetro del agujero de aceite (h). | Grado de la carga básica | |
| Max. Sta. Libras. | Max. Dyn. Libras. | |||||||||
| CYR-3/4 | CYR-3/4-S | CCYR-3/4-S | .750 | .500 | .250 | .5625 | 39/64 | 3/32 | 4130 | 1660 |
| CYR-7/8 | CYR-7/8-S | CCYR-7/8-S | .875 | .500 | .250 | .5625 | 39/64 | 4130 | 1660 | |
| CYR-1 | CYR-1-S | CCYR-1-S | 1,000 | .625 | .3125 | .6875 | 25/32 | 6120 | 2225 | |
| CYR-1 1/8 | CYR-1 1/8-S | CCYR-1 1/8-S | 1,125 | .625 | .3125 | .6875 | 25/32 | 6120 | 2225 | |
| CYR-1 1/4 | CYR-1 1/4-S | CCYR-1 1/4-S | 1,250 | .750 | .375 | .8125 | 63/64 | 8500 | 3930 | |
| CYR-1 3/8 | CYR-1 3/8-S | CCYR-1 3/8-S | 1,375 | .750 | .375 | .8125 | 63/64 | 8500 | 3930 | |
| CYR-1 el 1/2 | CYR-1 1/2-S | CCYR-1 1/2-S | 1,500 | .875 | .4375 | .9375 | 1 3/32 | 11280 | 4840 | |
| CYR-1 5/8 | CYR-1 5/8-S | CCYR-1 5/8-S | 1,625 | .875 | .4375 | .9375 | 1 3/32 | 11280 | 4840 | |
| CYR-1 3/4 | CYR-1 3/4-S | CCYR-1 3/4-S | 1,750 | 1,000 | .500 | 1,0625 | 1 1/4 | 15840 | 6385 | |
| CYR-1 7/8 | CYR-1 7/8-S | CCYR-1 7/8-S | 1,875 | 1,000 | .500 | 1,0625 | 1 1/4 | 15840 | 6385 | |
| CYR-2 | CYR-2-S | CCYR-2-S | 2,000 | 1,250 | .625 | 1,3125 | 1 13/32 | 21140 | 8090 | |
| CYR-2 1/4 | CYR-2 1/4-S | CCYR-2 1/4-S | 2,250 | 1,250 | .625 | 1,3125 | 1 13/32 | 21140 | 8090 | |
| CYR-2 el 1/2 | CYR-2 1/2-S | CCYR-2 1/2-S | 2,500 | 1,500 | .750 | 1,5625 | 1 11/16 | 1/8 | 32900 | 11720 |
| CYR-2 3/4 | CYR-2 3/4-S | CCYR-2 3/4-S | 2,750 | 1,500 | .750 | 1,5625 | 1 11/16 | 32900 | 11720 | |
| CYR-3 | CYR-3-S | CCYR-3-S | 3,000 | 1,750 | 1,000 | 1,8125 | 2 1/8 | 49820 | 15720 | |
| CYR-3 1/4 | CYR-3 1/4-S | CCYR-3 1/4-S | 3,250 | 1,750 | 1,000 | 1,8125 | 2 1/8 | 49820 | 15720 | |
| CYR-3 el 1/2 | CYR-3 1/2-S | CCYR-3 1/2-S | 3,500 | 2,000 | 1,125 | 2,0625 | 2 7/16 | 63250 | 22800 | |
| CYR-4 | CYR-4-S | CCYR-4-S | 4,000 | 2,250 | 1,250 | 2,3125 | 2 51/64 | 8540 | 29985 | |
| CYR-5-S | CCYR-5-S | 5,000 | 2,750 | 1,750 | 2,8750 | 3 9/16 | 3/16 | 135900 | 46575 | |
| CYR-6-S | CCYR-6-S | 6,000 | 3,250 | 2,250 | 3,3750 | 4 15/32 | 3/16 | 160900 | 60000 | |
| CYR-7-S | CCYR-7-S | 7,000 | 3,750 | 2,750 | 3,8750 | 5 3/16 | 3/16 | 213860 | 75380 | |
| CYR-8-S | CCYR-8-S | 8,000 | 4,250 | 3,255 | 4,5000 | 4 3/8 | 1/4 | 288200 | 92200 | |
| CYR-9-S | CCYR-9-S | 9,000 | 4,750 | 3,755 | 5,0000 | 5 1/16 | 5/16 | 366850 | 113260 | |
| CYR-10-S | CCYR-10-S | 10,000 | 5,250 | 4,255 | 5,5000 | 5 15/32 | 3/8 | 431130 | 131545 | |
